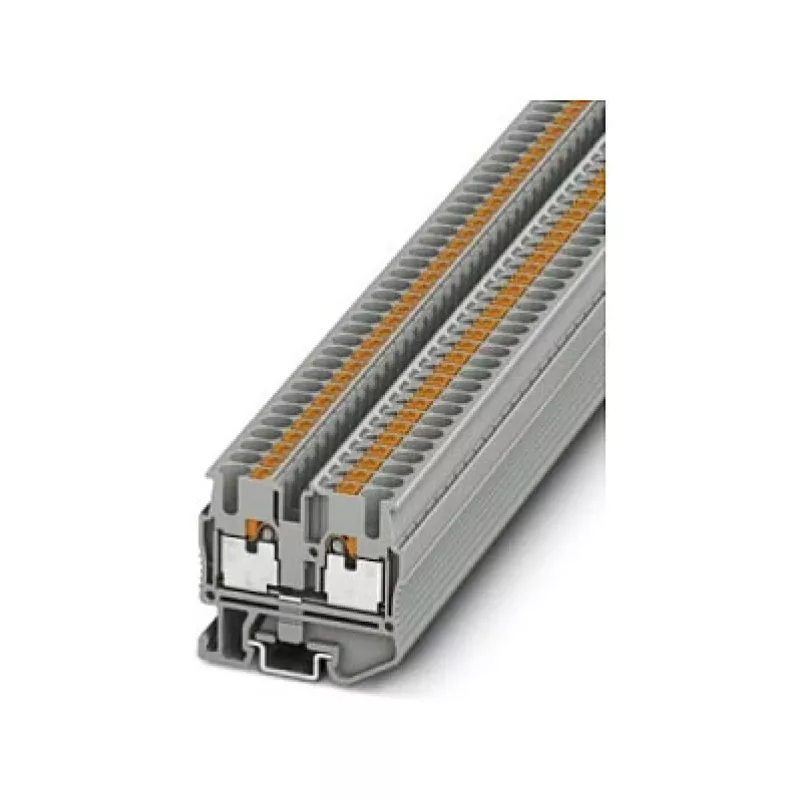

Phoenix Contact MPT 2.5 mini praėjimo gnybtų blokas, įstumiamas sujungimas, 2.5 mm², 500 V, 24 A, pilkas

When every millimetre of DIN rail counts, the Phoenix Contact MPT 2.5 mini feed-through terminal block delivers the wiring density your control panels demand. Its push-in connection eliminates the need for screwdrivers and torque checks, cutting installation time significantly—especially in high-volume panel building and automated assembly lines.

Why choose this terminal block

• Push-in technology: tool-free termination of solid and stranded conductors, reducing wiring effort and human error
• Compact mini design: frees up space on DIN rail NS 35/7.5, NS 35/15, or NS 32, allowing more components per cabinet
• Robust electrical ratings: 500 V and 24 A per IEC, suitable for industrial control circuits and harsh environments
• High fire safety: grey PA housing with UL 94 V0 flammability rating
• Wide temperature tolerance: operates from -60 °C to 105 °C, ensuring reliability in extreme conditions

Ideal applications

This terminal block is engineered for professionals who build and maintain control cabinets, PLC interfaces, and sensor wiring. Its clearly marked 8 mm stripping length and push-in mechanism accept conductors from 0.14 mm² to 4 mm² solid or 0.14 mm² to 2.5 mm² stranded. With two positions, it provides a clean feed-through point, while the grey housing integrates seamlessly with standard rail-mounted components. Rated for pollution degree 3 and overvoltage category III, it confidently handles demanding electrical environments.

Technical specifications

• Connection method: Push-in
• Number of positions: 2
• Nominal cross section: 2.5 mm²
• Rated voltage (IEC): 500 V
• Rated current (IEC): 24 A
• Colour: Grey
• Insulating material: PA (Polyamide)
• Flammability rating (UL 94): V0
• Operating temperature: -60 °C to 105 °C
• Mounting type: DIN rail (NS 35/7.5, NS 35/15, NS 32)
• Stripping length: 8 mm
• Conductor cross section solid: 0.14 mm² - 4 mm²
• Conductor cross section stranded: 0.14 mm² - 2.5 mm²
• Pollution degree: 3
• Overvoltage category: III
• Standards/approvals: IEC 60947-7-1, UL, cUL, EAC, VDE

Final recommendation

For a maintenance-free connection that speeds up wiring and increases panel density, the Phoenix Contact MPT 2.5 is the professional's choice. Its push-in design and compact footprint make it a smart investment for any industrial control application.
