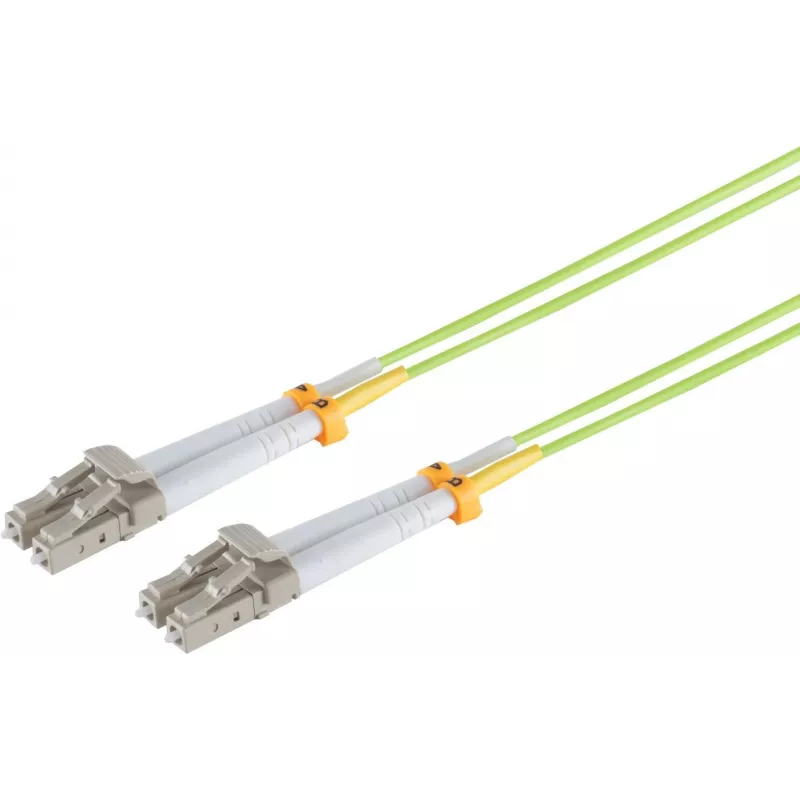

SHIVERPEAKS S/CONN maximum connectivity OM5 LC/LC Duplex Fiber Optic Patch Cable, 50/125µm, Lime Green, 15m 07-500815

Effective modal bandwidth of 4700 MHz·km at 850 nm – this SHIVERPEAKS S/CONN maximum connectivity OM5 LC/LC duplex fiber optic patch cable is engineered for high-speed multimode links where signal integrity and future-ready capacity are critical. The lime green LSZH jacket instantly identifies OM5 infrastructure, preventing confusion with legacy OM3/OM4 cabling and simplifying audits. Pre-terminated with LC duplex connectors on both ends, it eliminates field polishing and reduces installation time in data centers, enterprise backbones, and high-density patching environments.

Privalumai profesionalams

• OM5 multimode fiber with 50/125 µm core/cladding for extended reach at 850–953 nm
• LC duplex to LC duplex connectors with low insertion loss (< 0.3 dB typical)
• Lime green LSZH jacket: halogen-free, low smoke, and flame retardant for safety
• Effective modal bandwidth of 4700 MHz·km at 850 nm and 2470 MHz·km at 953 nm
• Supports SWDM applications, 40G/100G Ethernet, and high-density fiber patching

Kam tinka

This cable is ideal for network engineers, data center managers, and IT professionals who need reliable, high-bandwidth connections for 40G/100G Ethernet and SWDM applications. The 15-meter length provides flexibility for rack-to-rack or adjacent cabinet connections without excess slack. The LSZH jacket makes it suitable for enclosed spaces and public buildings where safety is paramount.

Kaip naudoti

Connect patch panels, switches, and servers quickly with the push-pull LC duplex connectors. The low attenuation (2.3 dB/km at 850 nm and 953 nm) ensures healthy link budgets even in crowded fiber trays. The lime green color aids in maintaining organized OM5 infrastructure.

Specifikacijos

• Prekės ženklas: SHIVERPEAKS
• Modelis: 07-500815
• MPN: 07-500815
• EAN: 4017538093332
• Kabelio tipas: Šviesolaidinis patch kabelis
• Skaidulos režimas: Multimode
• Skaidulos kategorija: OM5
• Šerdies/apvalkalo skersmuo: 50/125 µm
• Jungtis A: LC duplex
• Jungtis B: LC duplex
• Kabelio ilgis: 15,0 m
• Apvalkalo spalva: Lime green
• Apvalkalo medžiaga: LSZH (Low Smoke Zero Halogen)
• Skaidulų skaičius: 2 (duplex)
• Įterpimo nuostoliai (tipiniai): < 0,3 dB
• Atspindžio nuostoliai (tipiniai): > 30 dB
• Silpninimas esant 850 nm: 2,3 dB/km
• Silpninimas esant 953 nm: 2,3 dB/km
• Silpninimas esant 1300 nm: 0,6 dB/km
• Efektyvusis modalinis pralaidumas (EMB) esant 850 nm: 4700 MHz·km
• Efektyvusis modalinis pralaidumas (EMB) esant 953 nm: 2470 MHz·km
• Taikymas: Didelės spartos duomenų tinklai, SWDM, duomenų centrai
• Atitiktis standartams: IEC 60793-2-10 Type A1a.4, TIA-492AAAE
• Darbinė temperatūra: -20°C iki +70°C

Pabaigai

Rinkitės šį OM5 patch kabelį, kai reikia ateities reikalavimus atitinkančios, saugios jungties, kuri jau dabar palaiko 40/100G Ethernet ir SWDM plėtrą – visa tai išskirtiniame lime green apvalkale.
