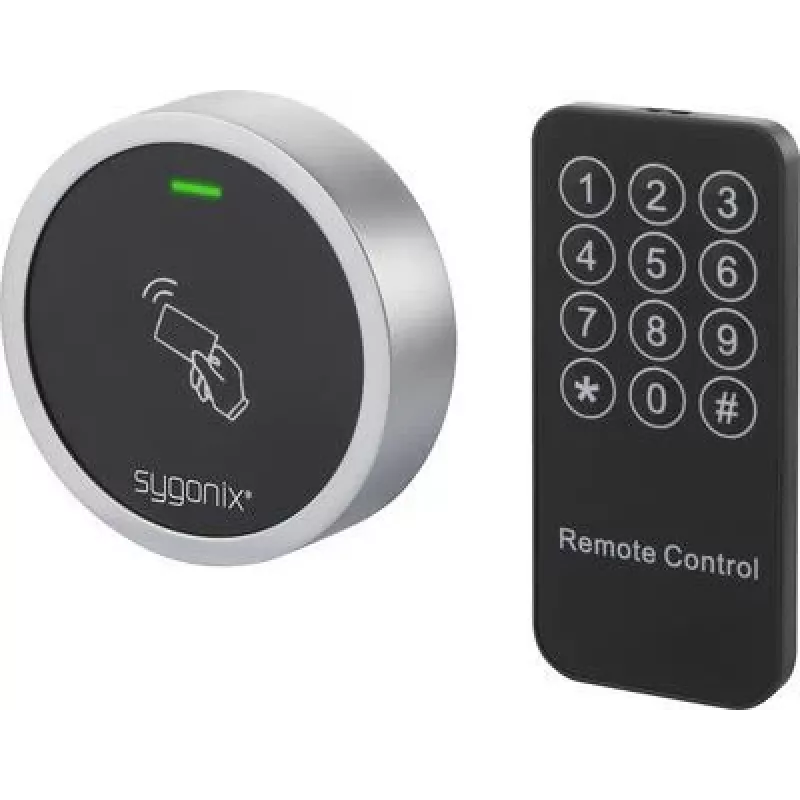

Sygonix SY-4599780 Transponder Access Control System Surface-Mounted 24 V/DC IP66

For facility managers and business owners who need a dependable, weather-resistant access control solution, the Sygonix SY-4599780 transponder access control system delivers professional-grade security without complexity. Built for surface mounting and engineered to withstand harsh conditions, this unit ensures controlled entry for offices, warehouses, and residential complexes.

Key specifications

• Power supply: 24 V/DC
• Protection rating: IP66
• User capacity: up to 2000 users
• Transponder frequency: 125 kHz
• Reading range: 3 - 6 cm
• Relay output: NO/NC, max 2 A, 30 V/DC
• Operating temperature: -20 °C to +50 °C
• Housing material: zinc alloy
• Backlit keypad
• Tamper contact, door open sensor input, alarm output
• Adjustable door opening time: 0-99 seconds
• Doorbell function

Why choose it

This access control system combines high security with ease of use. The IP66 rating ensures protection against dust and water, making it suitable for outdoor installation. The backlit keypad allows operation in low-light conditions, and the tamper alarm adds an extra layer of security.

Ideal use cases

• Office buildings
• Warehouses
• Residential complexes
• Industrial facilities

Good to know

The system supports up to 2000 users and works with EM4100 compatible transponders. Installation is straightforward with surface mounting, and the relay output can be configured for normally open or normally closed operation.

Tip: For optimal performance, mount the unit at a comfortable height (approximately 1.2–1.5 m) and avoid direct exposure to extreme weather. Regularly check the tamper contact and clean the keypad with a soft, damp cloth to maintain reliable operation.
