Extralink CAT6A RJ45 jungtis be įrankių – UTP 8P8C auksuota 10Gbps Ethernet kištukas

When every minute of downtime costs your business, terminating Cat6A cabling should not require a crimping tool and a steady hand. The Extralink CAT6A RJ45 Tool-less Connector lets your technicians terminate UTP cable in seconds – simply arrange the pairs, close the cap, and the connection is ready for 10 Gbps. This is the plug for on-site repairs, data centre patching, and structured cabling projects where speed and reliability are non-negotiable.

Key Specifications

• Connector type: RJ45 8P8C plug (male)
• Category: CAT6A / Class EA
• Shielding: UTP (unshielded twisted pair)
• Data rate: 10 Gbps
• Bandwidth: 500 MHz
• Wire compatibility: solid and stranded copper, 22-26 AWG
• Contact plating: 50 micron gold plated
• Wiring standard: T568A/T568B colour coded
• Housing material: high-impact polycarbonate
• Reusable: multiple terminations supported
• Operating temperature: -10°C to 60°C
• Withstand voltage: 1000V AC RMS
• Mating cycles: ≥750
• Standards: RoHS, CE, ISO/IEC 11801, TIA/EIA-568-C.2

Why Choose It

This connector eliminates the need for expensive crimping tools and the risk of mis-terminated pins. The tool-less mechanism lets you verify pair alignment before closing, while the gold-plated contacts maintain reliable conductivity over repeated mate/unmate cycles. Its robust polycarbonate body protects the delicate wire connections inside, making it suitable for demanding network environments.

Ideal Use Cases

• Terminating CAT6A solid or stranded horizontal cable in LAN outlets
• Creating custom-length patch cords for server racks and network rooms
• Field repairs and retrofits where existing cable runs cannot be re-pulled
• Power-over-Ethernet devices such as IP cameras and wireless access points
• Data centre pre-termination and quick patching

Good to Know

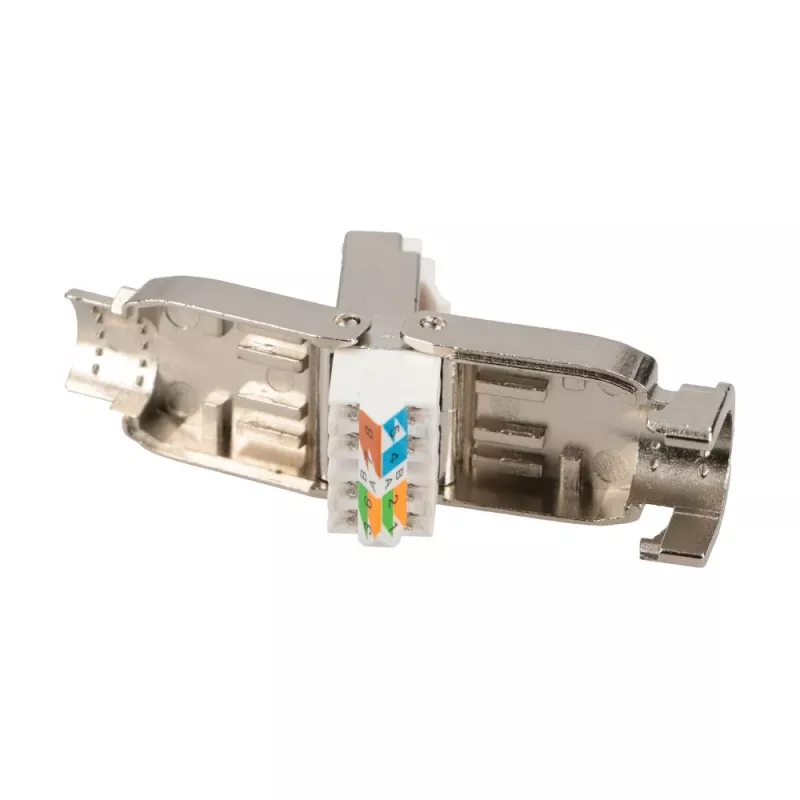

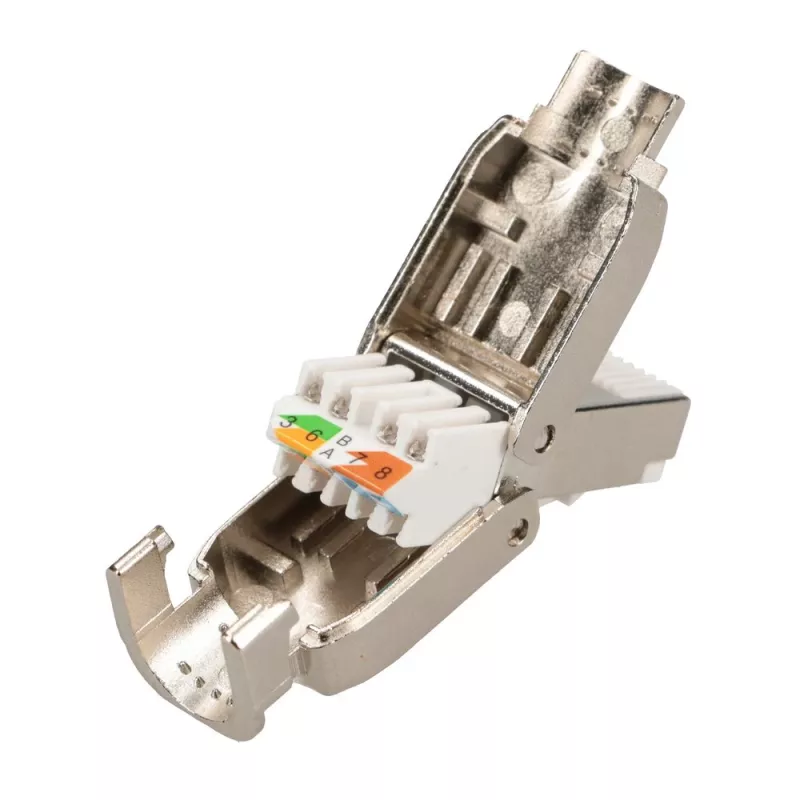

No special tool is required. Open the hinged cover, insert the wires according to the T568A or T568B colour code, press the cap shut, and the gold-plated contacts pierce the insulation. Always test the finished plug with a network cable tester. This connector supports both solid and stranded cables between 22 and 26 AWG and keeps full 10GBASE-T performance over Category 6A cabling.
