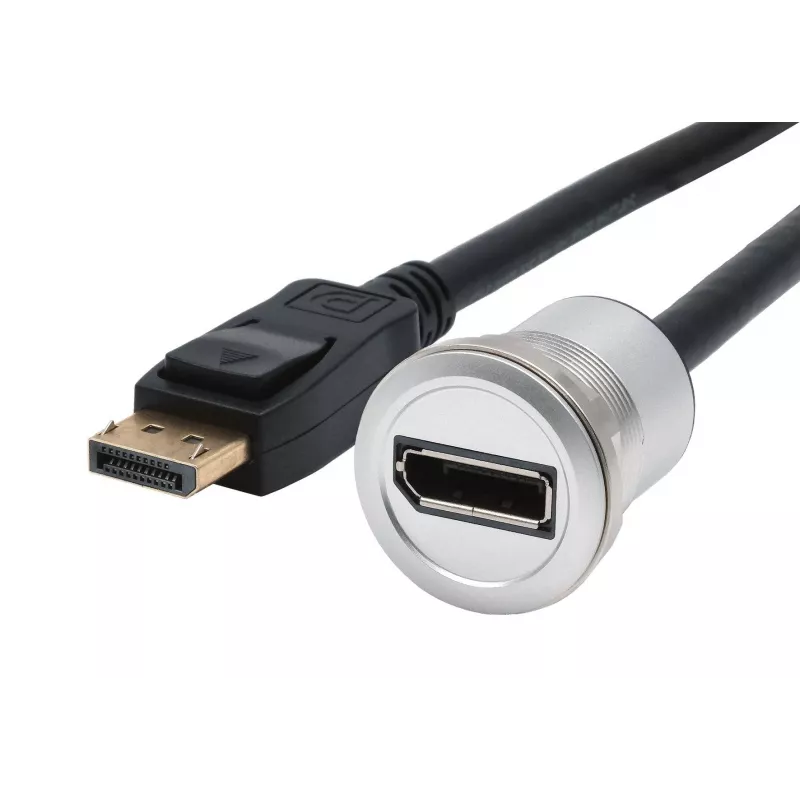

EXSYS EX-49185 Panel Mount DisplayPort Adapter Cable, 30 cm, Male to Female, Metal Housing, 4K 60Hz

When you need a DisplayPort connection that can withstand repeated plugging and stay firmly in place, the EXSYS EX-49185 panel mount adapter cable is the professional solution. Its metal-housed female connector screws directly into your enclosure, providing a stable, durable port that won't loosen or break like standard cable-mounted connectors.

Who is it for

This adapter is designed for system integrators, AV installers, and IT professionals who require a reliable, fixed DisplayPort interface in custom enclosures, server racks, kiosks, or wall plates. It's ideal for anyone who values clean installation and long-term signal integrity.

Main features

• Panel mount female DisplayPort connector with robust metal housing
• Male DisplayPort connector on the other end for direct connection to internal hardware
• 30 cm cable length for flexible routing inside enclosures
• Supports DisplayPort 1.2 with resolutions up to 4K UHD (3840 x 2160) at 60Hz
• High data rate of 21.6 Gbps (HBR2) for smooth video and audio
• HDCP compliant for protected content playback
• Triple shielded cable to minimize electromagnetic interference
• Plug and play – no drivers required

Specifications

• Connector A: DisplayPort Male
• Connector B: DisplayPort Female (Panel Mount)
• Cable Length: 30 cm
• DisplayPort Standard: 1.2
• Max Resolution: 3840 x 2160 @ 60Hz
• Max Data Rate: 21.6 Gbps
• HDCP Support: Yes
• Audio Support: Yes, digital audio
• Connector B Housing Material: Metal
• Cable Colour: Black
• Mounting Type: Screw-on (screws not included)
• Backward Compatibility: DisplayPort 1.1a
• Video Features: Deep Color, Multi-Stream Transport (MST)
• Cable Shielding: Triple Shielded

Tips

Ensure the panel cutout matches the dimensions of the female connector housing. For a secure installation, use appropriate screws (not included) to fasten the connector to your panel. This adapter is ideal for extending a DisplayPort port from a motherboard or graphics card to a convenient location on your case or wall.
