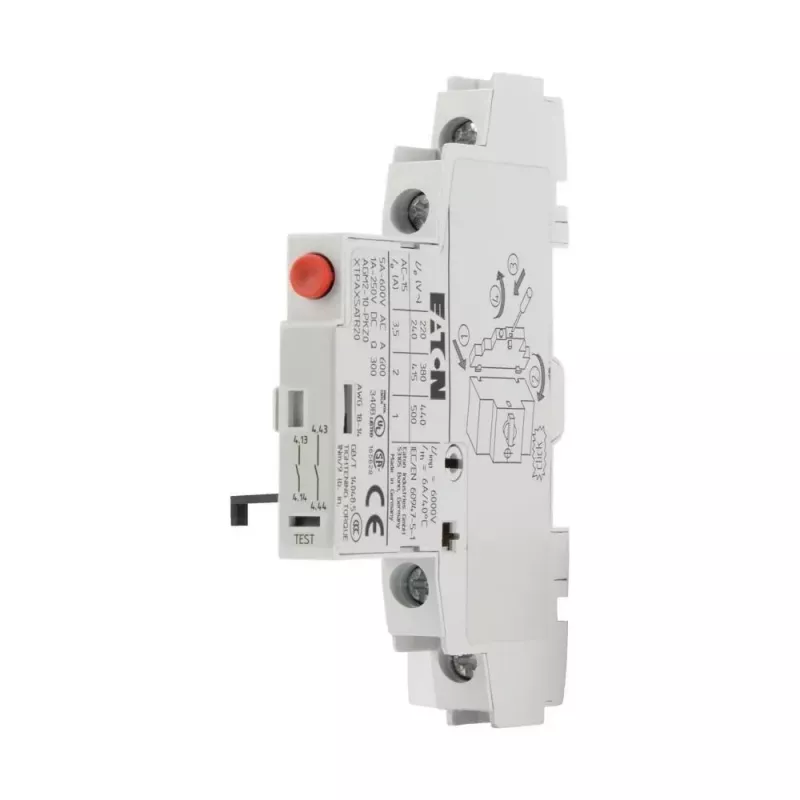

Eaton Trip-Indicating Auxiliary Contact AGM2-10-PKZ0, 2 NO, 240 V AC, 3,5 A, for PKZ0 072898

When a motor protective circuit breaker trips, every second of downtime counts. The Eaton AGM2-10-PKZ0 auxiliary contact delivers immediate trip indication, enabling your control system to respond without delay. Designed specifically for Eaton PKZ0 series breakers, it provides two normally open (NO) contacts for reliable remote status monitoring.

Advantages

• Rapid fault identification: clearly signals when a breaker has tripped, reducing troubleshooting time.
• Flexible installation: side-mounts on either the left or right side of the breaker, saving panel space.
• Secure connections: screw terminals ensure maintenance-free, vibration-resistant wiring.
• Robust construction: operates reliably in temperatures from -25 to +55 °C.

Suitable for

• Monitoring Eaton PKZ0 motor protective circuit breakers in industrial control panels.
• Motor protection circuits requiring remote trip signalling in machinery and automation systems.
• Applications where quick fault diagnosis is critical to minimise downtime.

Key specifications

• Contact configuration: 2 NO
• Rated operational voltage: 240 V AC
• Rated operational current: 3,5 A at 240 V AC (AC-15)
• Rated operational voltage DC: 24 V DC
• Rated operational current DC: 1 A at 24 V DC (DC-13)
• Mounting: side mounting, left or right
• Terminal type: screw terminals
• Degree of protection: IP20
• Operating temperature: -25 to +55 °C

How to use

Mount the auxiliary contact on the side of a compatible PKZ0 breaker. Connect the NO contacts to your monitoring circuit using the screw terminals. When the breaker trips, the contacts close, sending a signal to your control system. Always verify terminal torque during installation to ensure connection integrity.

For reliable trip indication in motor protection circuits, pair this auxiliary contact with Eaton PKZ0 circuit breakers. Regularly inspect connections as part of your preventive maintenance schedule.
