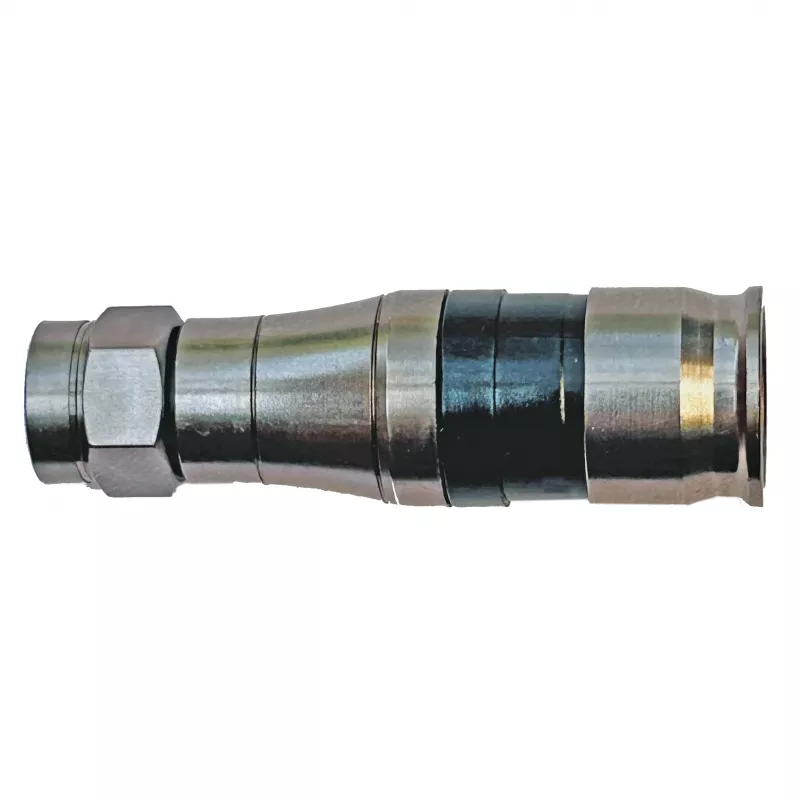

AXING EX11N F-Compression Connector NITIN 7.2 mm RG11

When every decibel of signal matters, the AXING EX11N F-compression connector stands out with its nickel-plated brass body and O-ring seal. This is not just another F-connector; it is a precision component engineered for RG11 coaxial cables with an outer diameter of 7.0 to 7.2 mm, delivering shielding effectiveness beyond 100 dB and return loss greater than 30 dB.

Why professionals choose the EX11N

In satellite, cable TV, and terrestrial DVB-T/T2 installations, signal integrity is non-negotiable. The EX11N ensures a secure, low-loss connection thanks to its compression design and high-quality materials. Its weatherproof construction, UV stability, and corrosion resistance make it suitable for outdoor use, while the O-ring seal provides additional protection against moisture.

• High shielding effectiveness: >100 dB (30-1000 MHz), >90 dB (1000-3000 MHz)
• Excellent return loss: >30 dB (5-1000 MHz), >25 dB (1000-3000 MHz)
• Weatherproof design with O-ring seal, UV and corrosion resistance
• Compatible with RG11 cables with 7.0-7.2 mm outer diameter
• Nickel-plated brass construction for durability and conductivity

Who it suits

This connector is ideal for professional installers and technicians working with RG11 coaxial cables in satellite, cable TV, and DVB-T/T2 systems. It is also a reliable choice for demanding residential or commercial installations where long-term performance is critical.

Key specifications

• Connector type: F-connector (compression)
• Impedance: 75 Ohm
• Frequency range: 0-3000 MHz
• Cable compatibility: RG11, outer diameter 7.0-7.2 mm
• Inner conductor diameter: 1.0-1.3 mm
• Dielectric diameter: 4.8 mm
• Operating temperature: -40°C to +85°C
• Installation: Requires compression tool (e.g., AXING BZT 11)

How to use

Prepare the RG11 cable by stripping the jacket and dielectric to the appropriate dimensions. Insert the cable into the connector and use a compression tool to crimp the connector securely. Ensure the center conductor is properly seated and the O-ring is in place for a weatherproof seal.

Tips: Always use a calibrated compression tool to avoid damaging the connector or cable. For outdoor installations, apply additional silicone grease to the O-ring for extra moisture protection. Regularly inspect connections for corrosion, especially in coastal or industrial environments.
